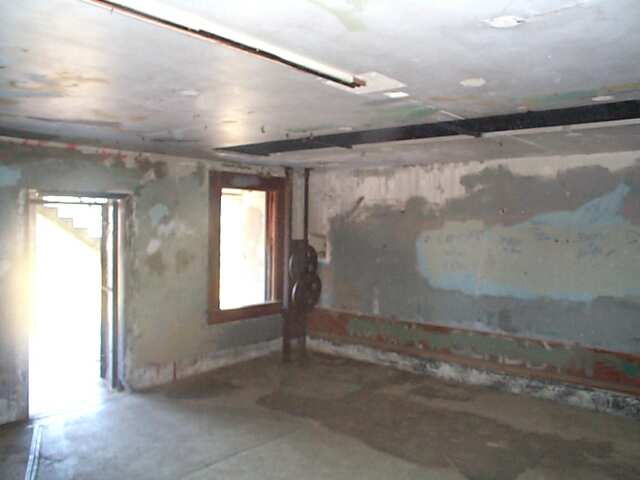

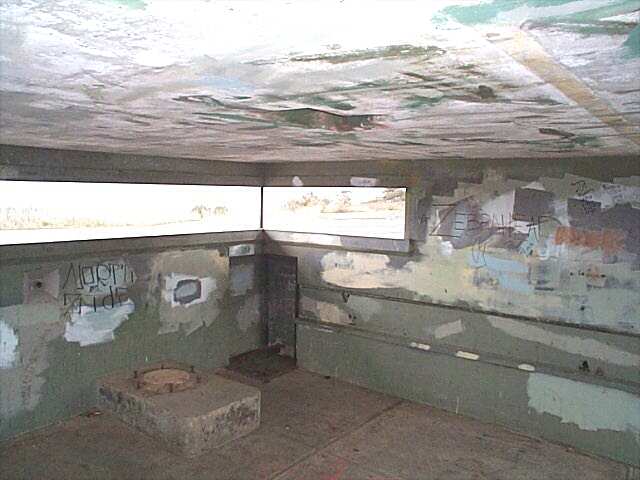

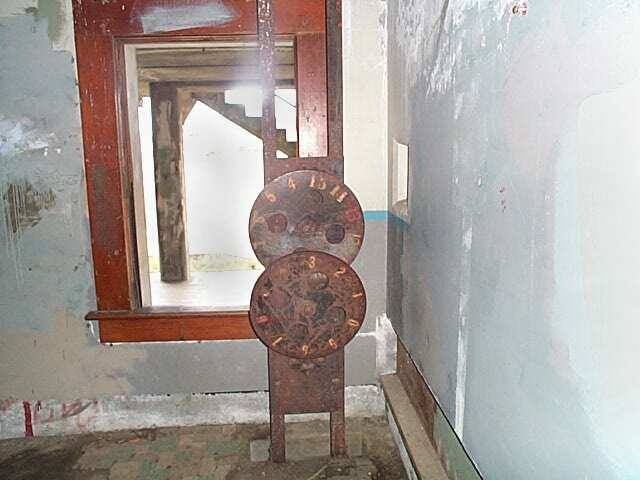

| The plotting room equipment.
March 2002 |

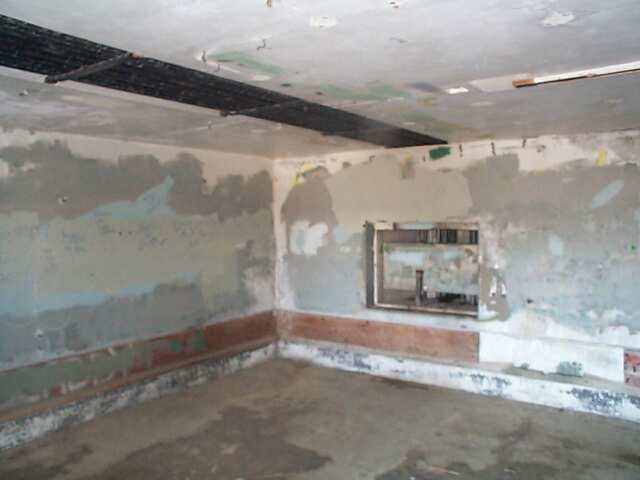

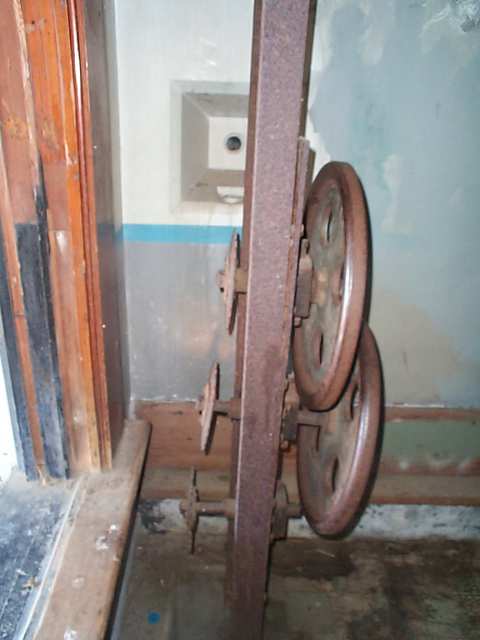

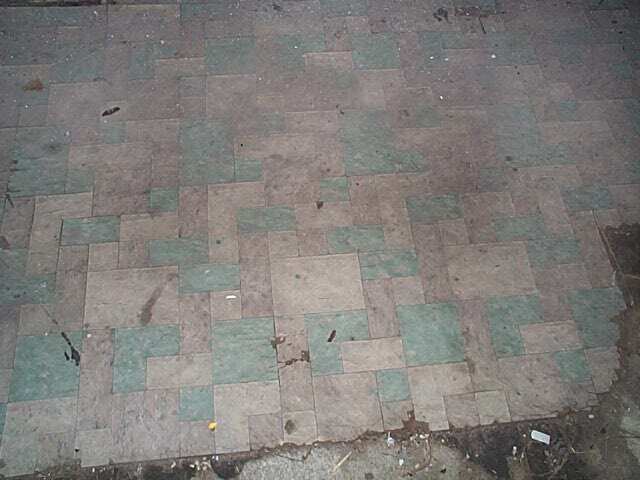

| Detail of the plotting room equipment. |

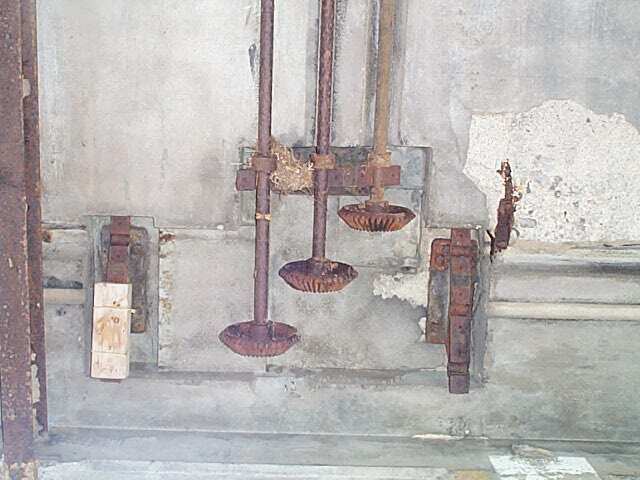

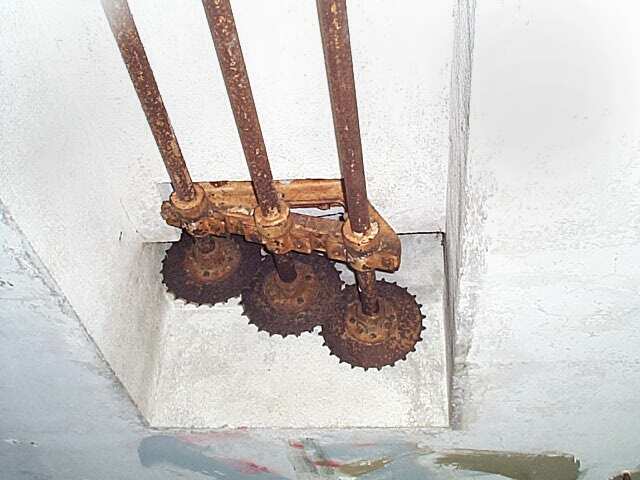

| Looking up the data shaft, these sprockets would have been linked to those in the plotting room by a set of chains. |

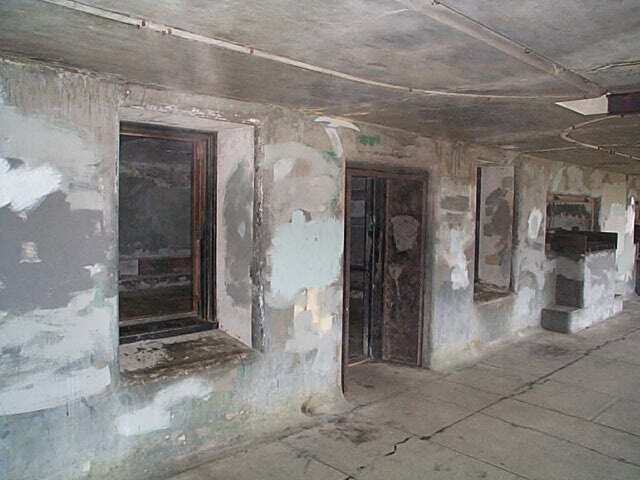

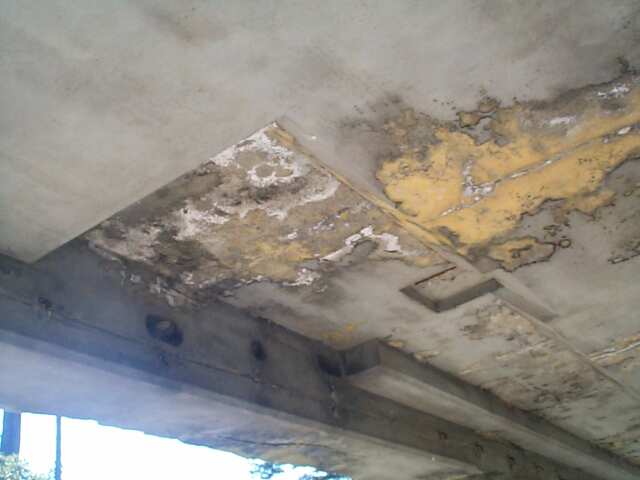

| There was a 'T' junction in the data system out side the #2 hoist room, here the signal was split and sent to both guns.
March 2002 |
| The #2 end of the system. |
|
| Detail of the plotting room equipment. |

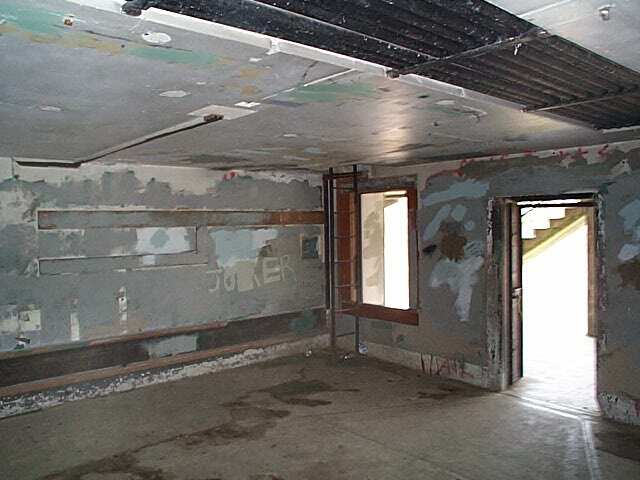

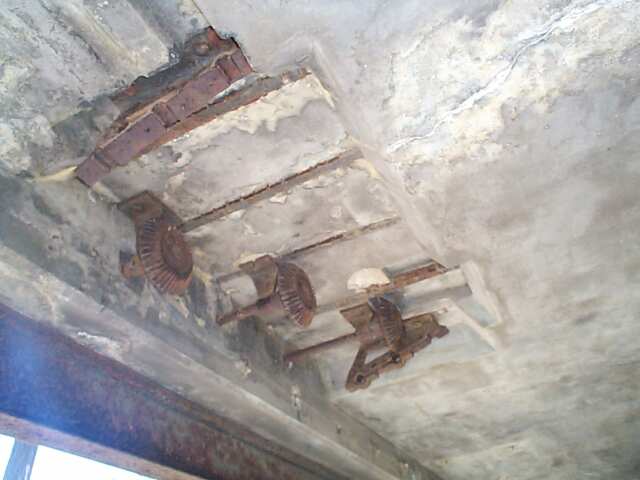

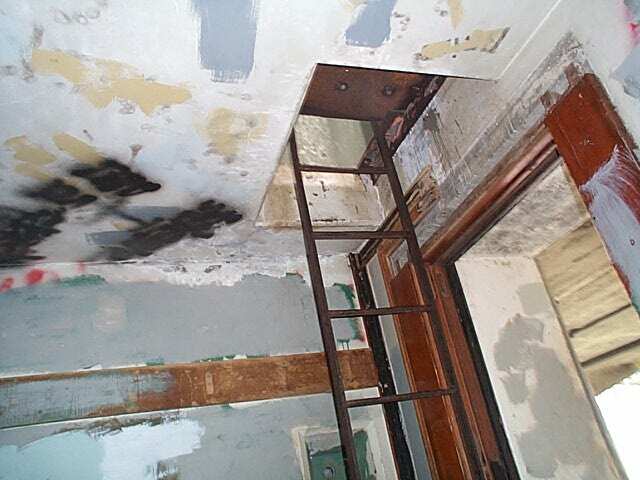

| The data shaft comes out in the ceiling of the #2 hoist room.
March 2002 |

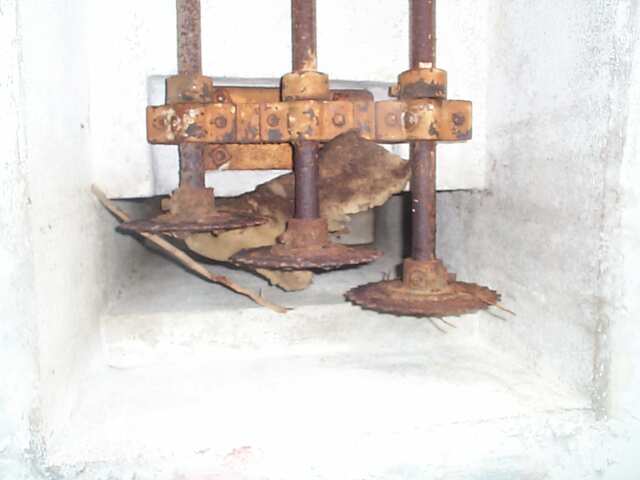

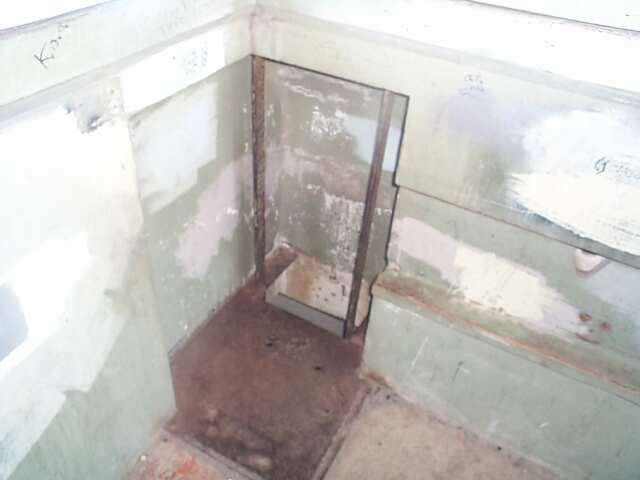

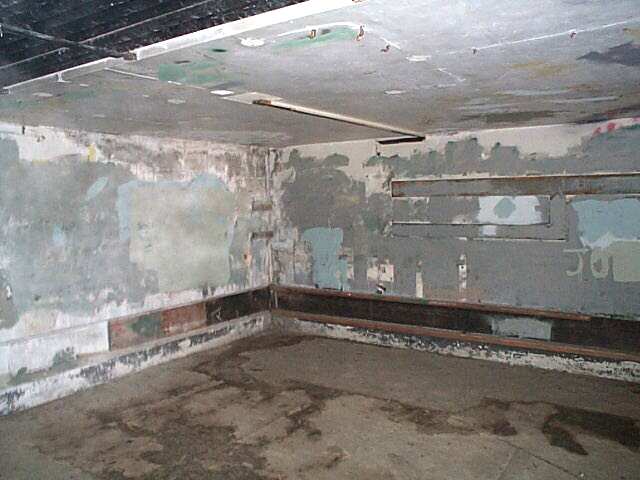

| Recess at the #1 end of the system |

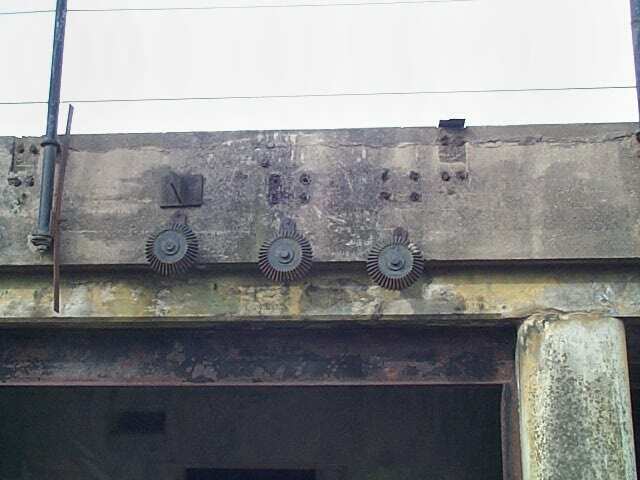

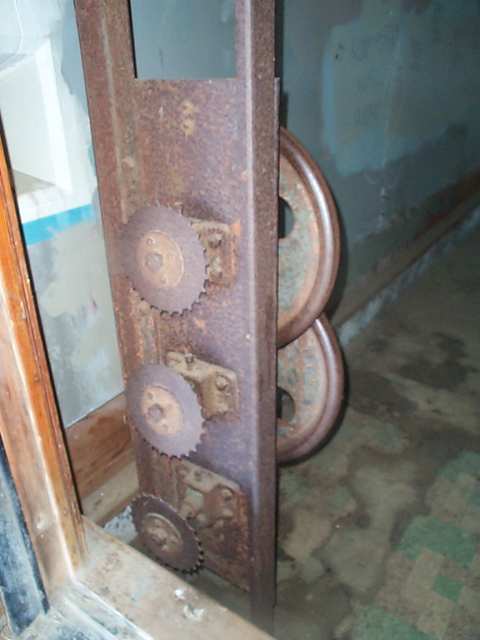

| The other side of the #2 end. from here the data would have been sent up to the level of the loading platform and displayed for the gun crew.
March 2002 |
|
