Plotting Room
Battery Const. #402,
Fort Schwatka, HD Dutch Harbor
Home  |  Dutch Harbor

The combined plotting, spotting and switchboard room for Battery Const. #402 is housed in a reinforced concrete structure about 500 feet southeast of the battery. The facility includes a latrine, an (anti-)Chemical Warfare Service, or CWS room, an airlock, a plotting room and a fire control switchboard room. It appears the structure may have been reused after the war, as some newer electrical equipment is installed.

A system of wooden tunnels connected the plotting room with the Battery Command station and an SCR-296 radar site. With the exception of a short concrete section under the road, the whole tunnel system has collapsed.

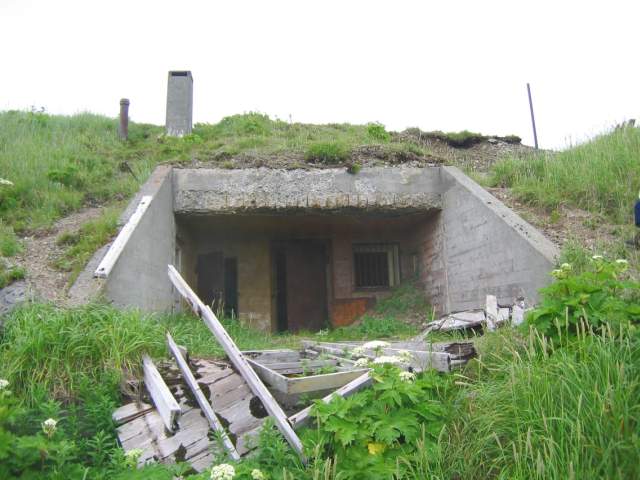

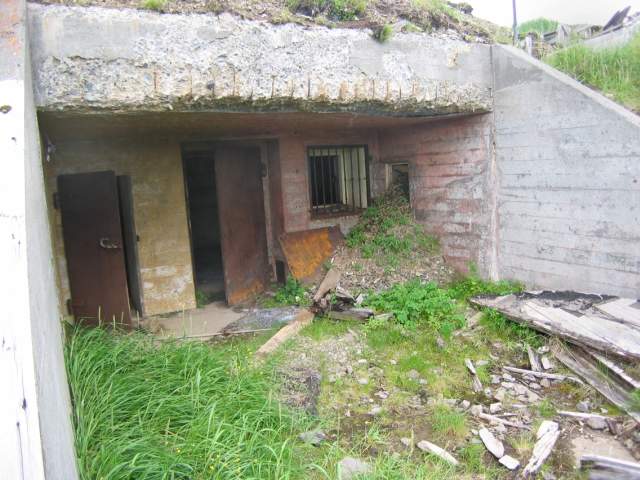

The plotting room entrance.
July 2004

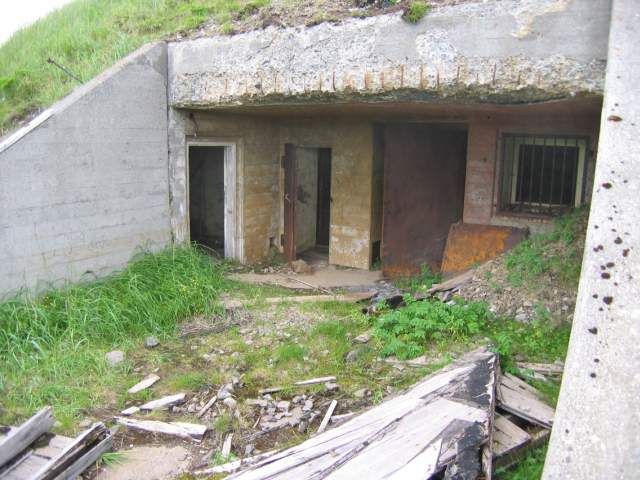

Doors from left to right: The utility room, airlock and the main entry.
July 2004
Doors from left to right: Airlock, main entry and the collapsed tunnel access (full of dirt).
July 2004

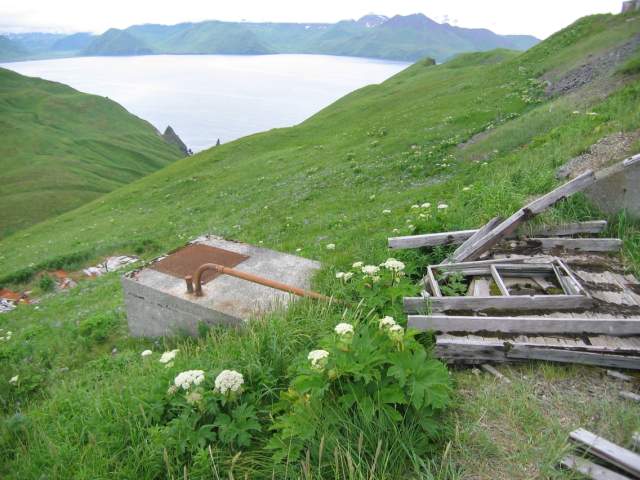

Concrete utility box in front of the plotting room. Also some wooden debris, possibly from a structure enclosing the area between the wingwalls.
July 2004

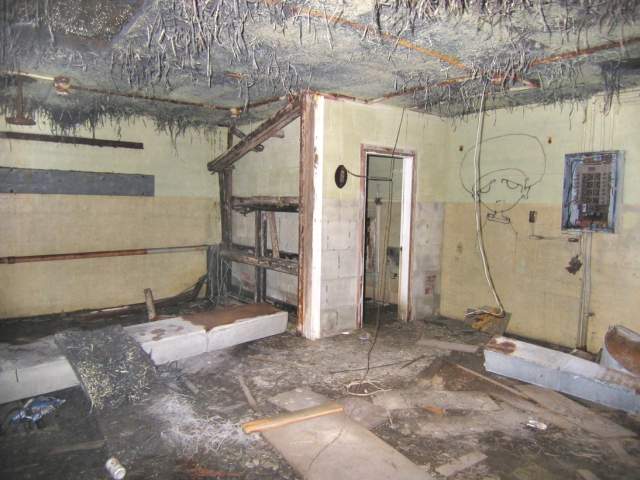

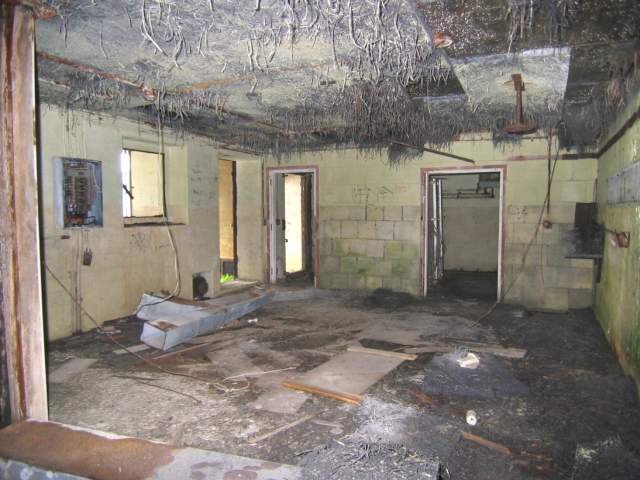

Plotting room

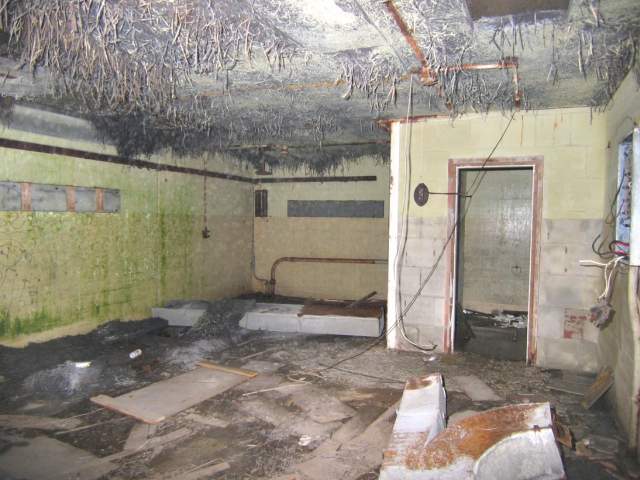

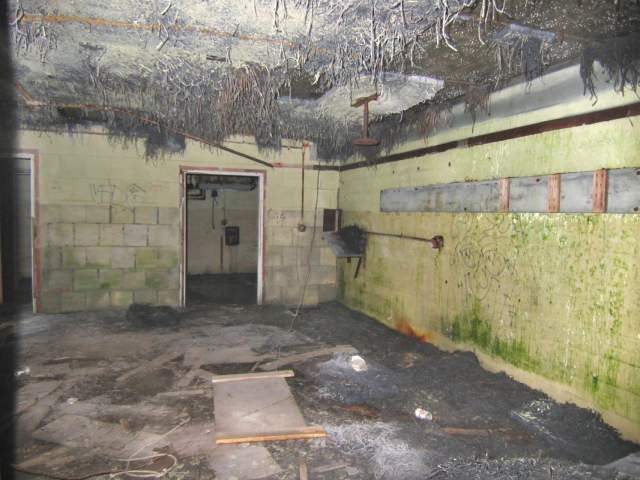

Looking east, latrine door at right.
July 2004
Looking south.
July 2004
Looking west.
July 2004
The plotting room, looking north.
July 2004

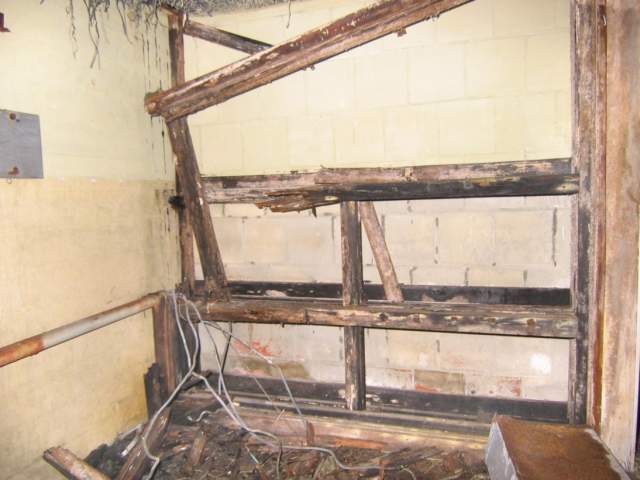

Electrical storage battery rack next to the latrine.
July 2004

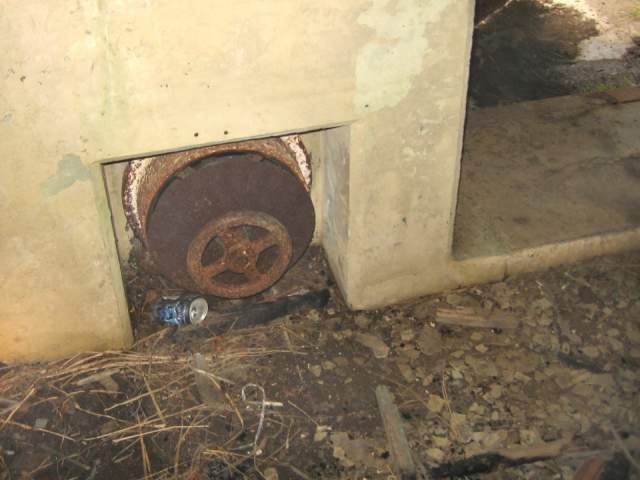

Detail of vent near the main door.
July 2004

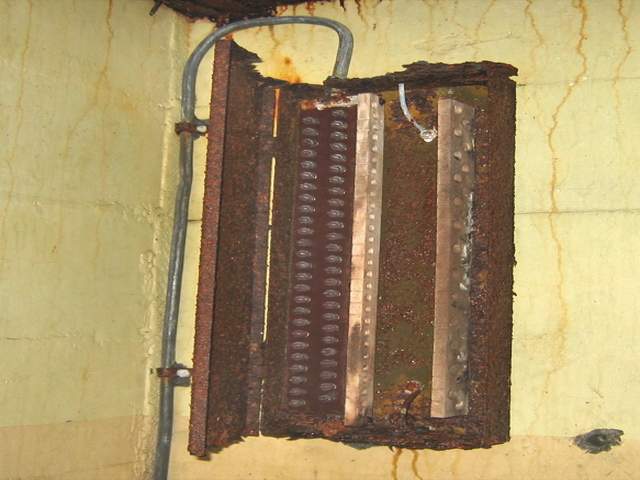

Detail of telephone junction box.
July 2004

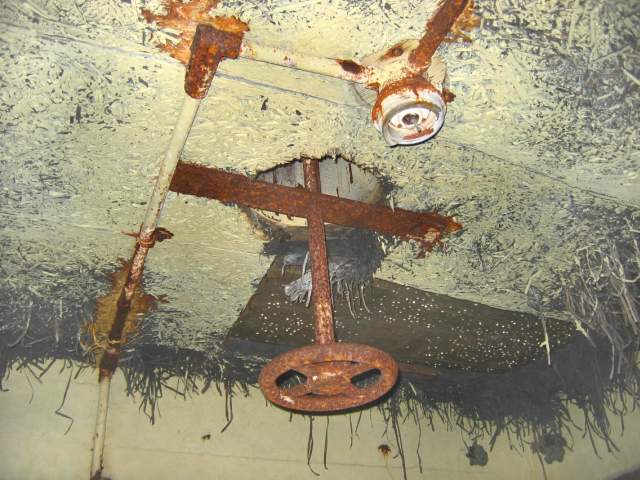

Detail of ceiling vent.
July 2004



FC Switchboard room

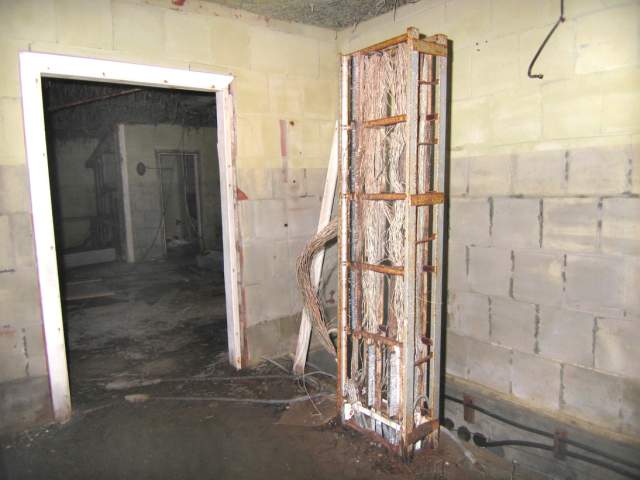

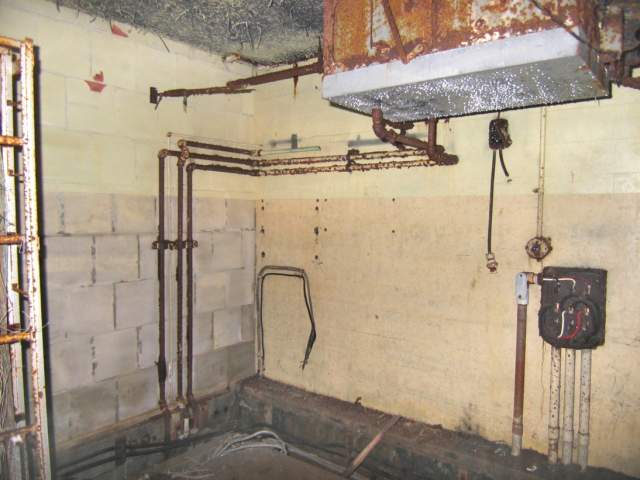

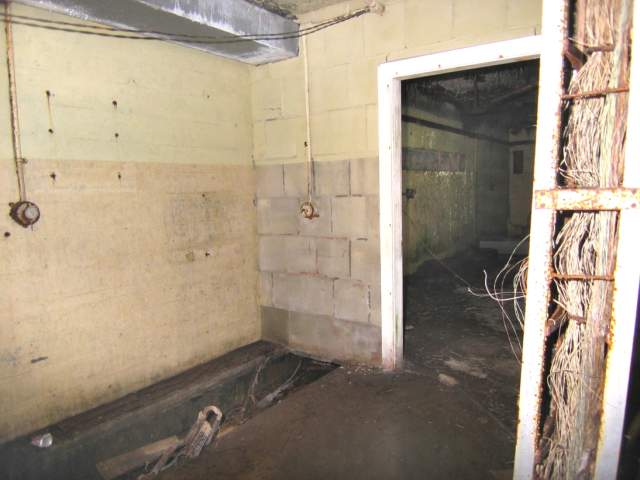

Looking west.
July 2004
The north corner.
July 2004
Looking west.
July 2004
The switchboard room, looking south.
July 2004
Detail of cable trench along the southwest wall.
July 2004

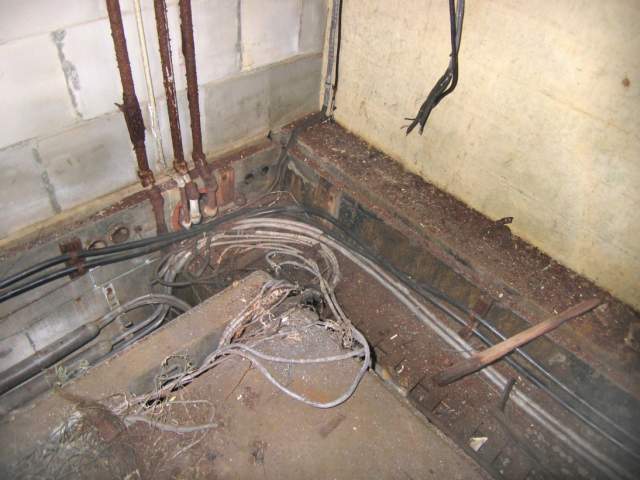

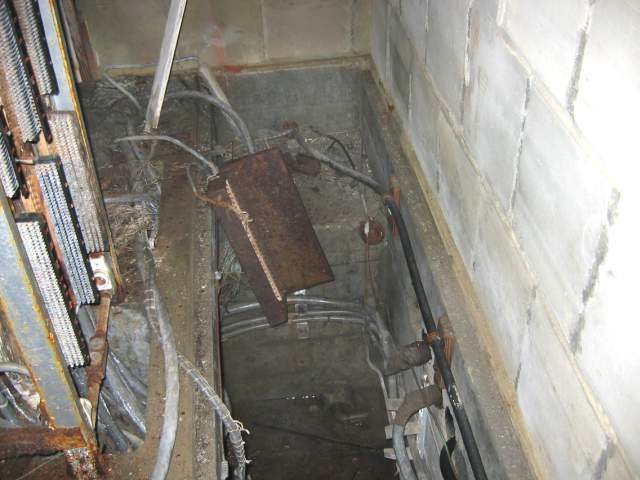

Detail of cable trenches in the west corner.
July 2004

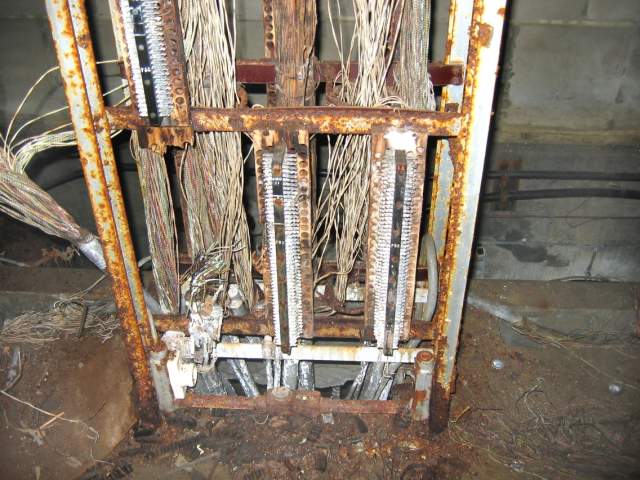

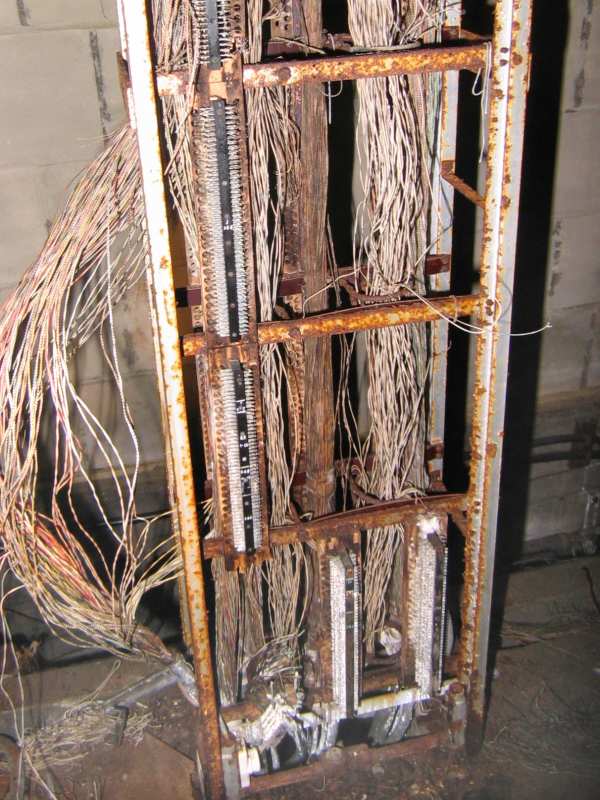

Detail of telephone equipment.
July 2004
Detail of telephone equipment.
July 2004



Airlock and CWS room

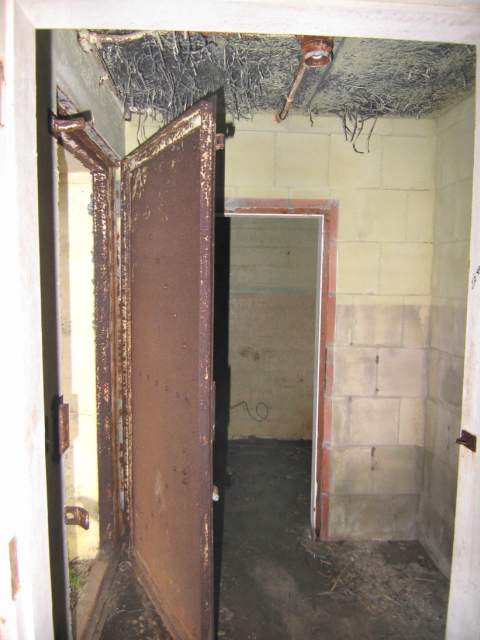

Looking northwest into the airlock.
July 2004

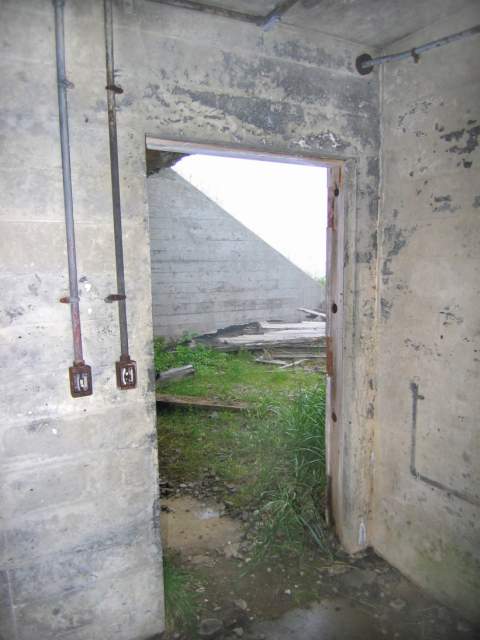

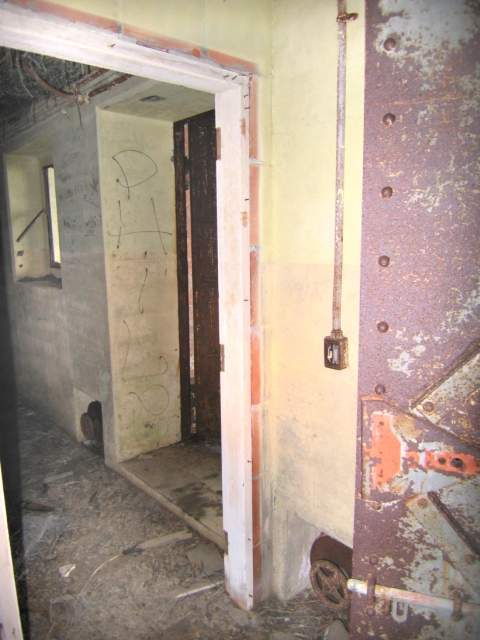

Looking south out of the airlock.
July 2004
Looking west in the airlock.
July 2004

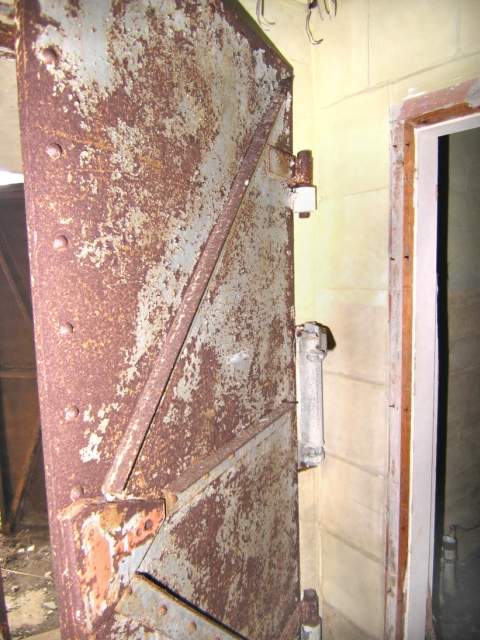

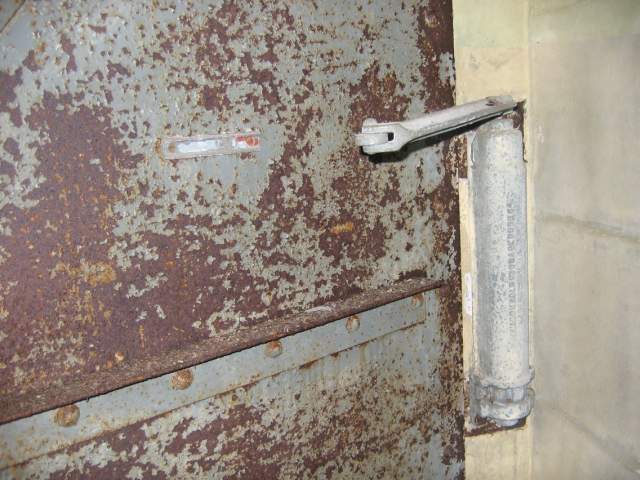

Detail of the door spring mechanism.
July 2004
Looking southeast out of the CWS room.
July 2004

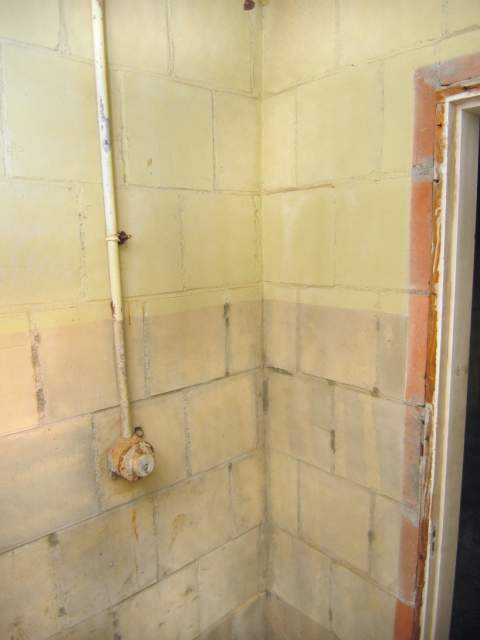

The east corner of the CWS room.
July 2004



Latrine

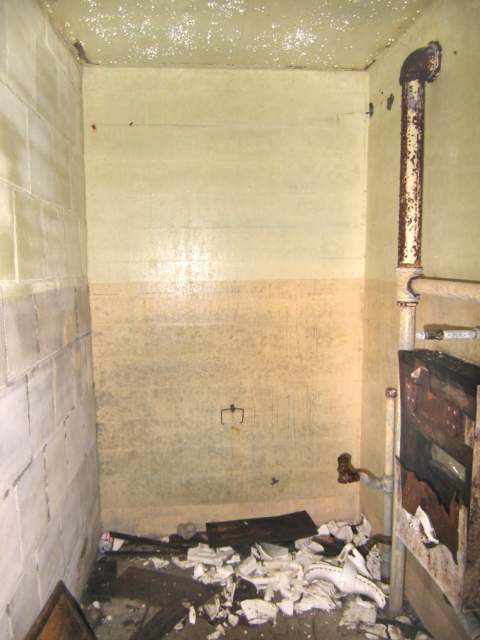

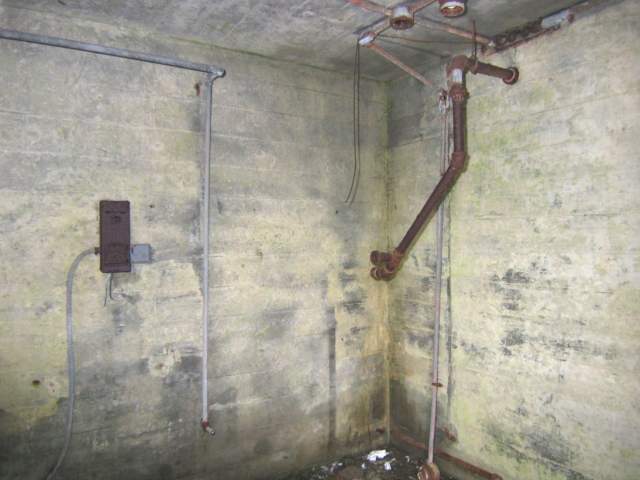

Looking southeast.
July 2004
Looking northwest.
July 2004

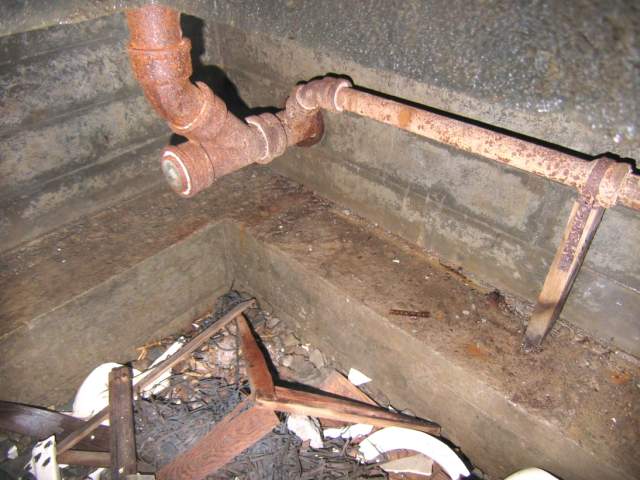

Utility space under the latrine.
July 2004

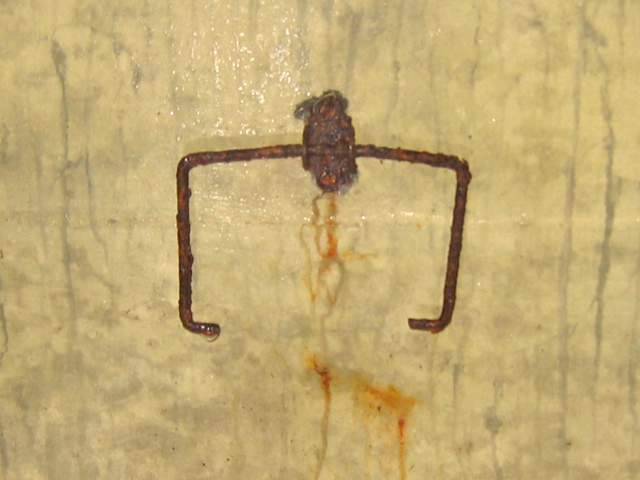

Detail of toilet paper holder.
July 2004



Utility room

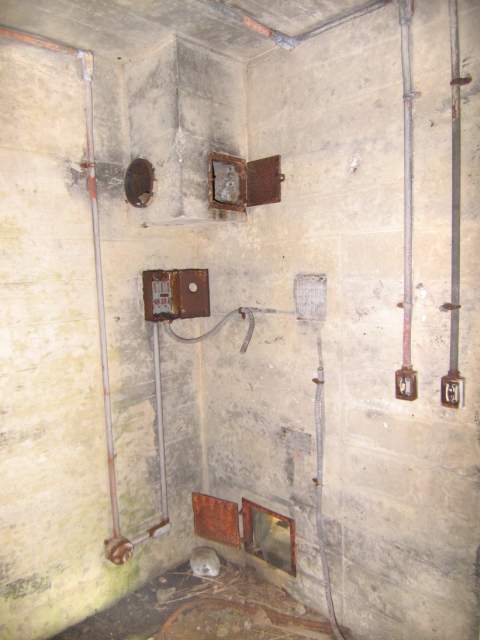

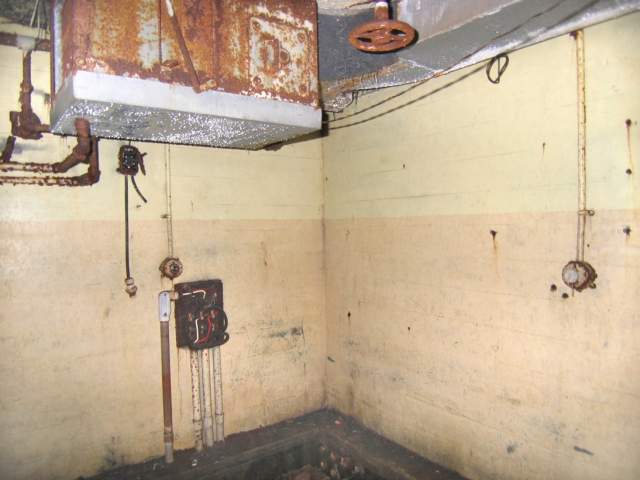

Looking north in the utility room.
July 2004

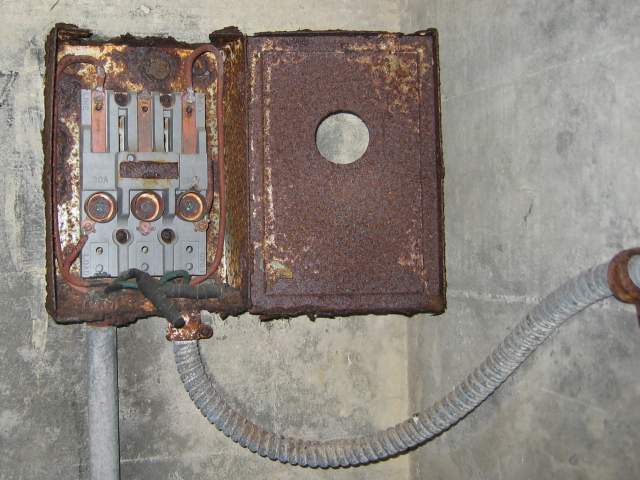

Detail of electrical box.
July 2004
The east corner.
July 2004

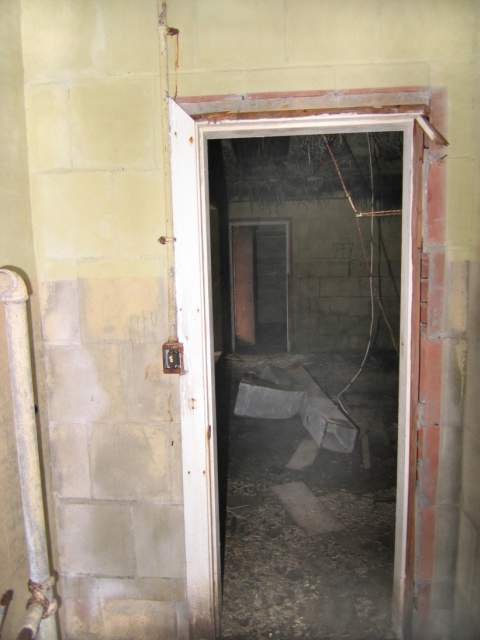

Looking out of the utility room.
July 2004



Tunnel segment

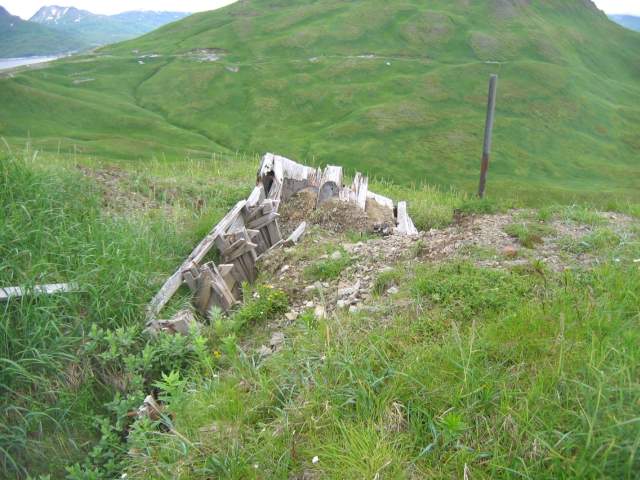

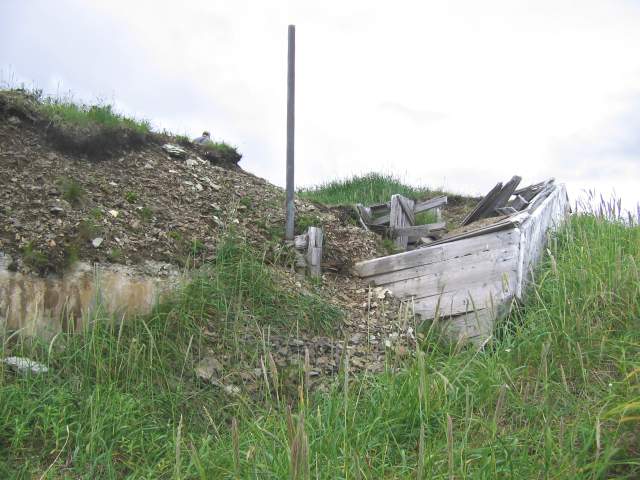

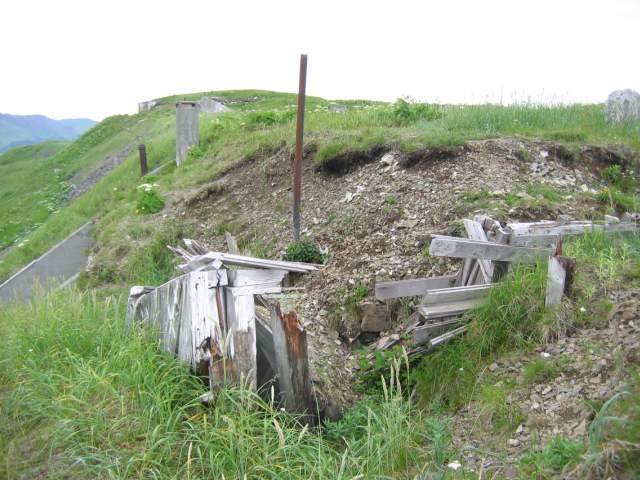

It's a bit difficult to make out, but here you can see the collapsed tunnel come from the right, along the side of plotting room, made a 90° corner and go down a flight of stairs to the plotting room level.
July 2004
Looking southwest along the tunnel. The stairway was near the vertical pipe.
July 2004
The top of the collapsed stairway, with the same vertical pipe.
July 2004
The southwest end of the concrete segment.
July 2004

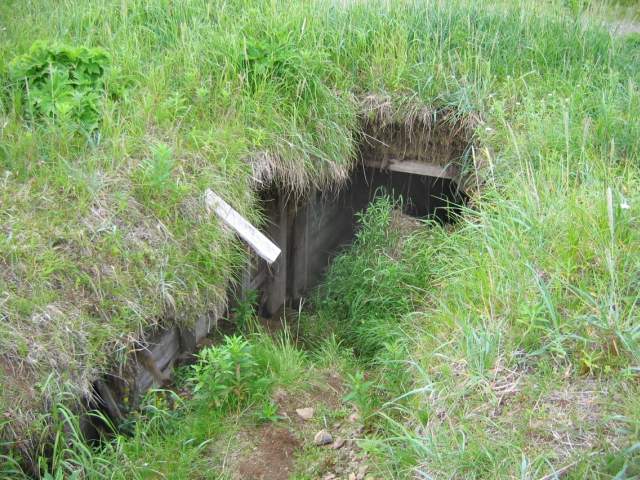

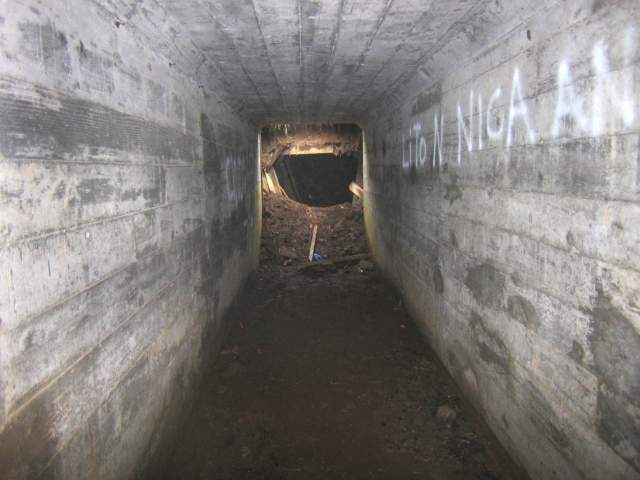

Looking northeast under the road, the collapsed section ahead lead to the radar site.
July 2004






Documents
Form 2August 1, 1944
Detail map of areaDecember 10, 1944
