Fort Casey Information
3" gun Ft. Flagler.

Located near the middle of Whidbey Island, Fort Casey was built in the late 1800s, and other than some antiaircraft artillery, few major installations were added after the initial project. Armament at the fort included sixteen 12-inch mortars, seven 10-inch disappearing guns, six 6-inch disappearing guns, two 5-inch guns and four 3-inch guns.

Southern Fort Casey is now a state park, while the northern parts (including Battery Parker) are owned by Seattle Pacific University. Batteries Moore, Parker and Valleau's interiors are closed, along with parts of the mortar batteries. A few of the FC stations are closed as well.

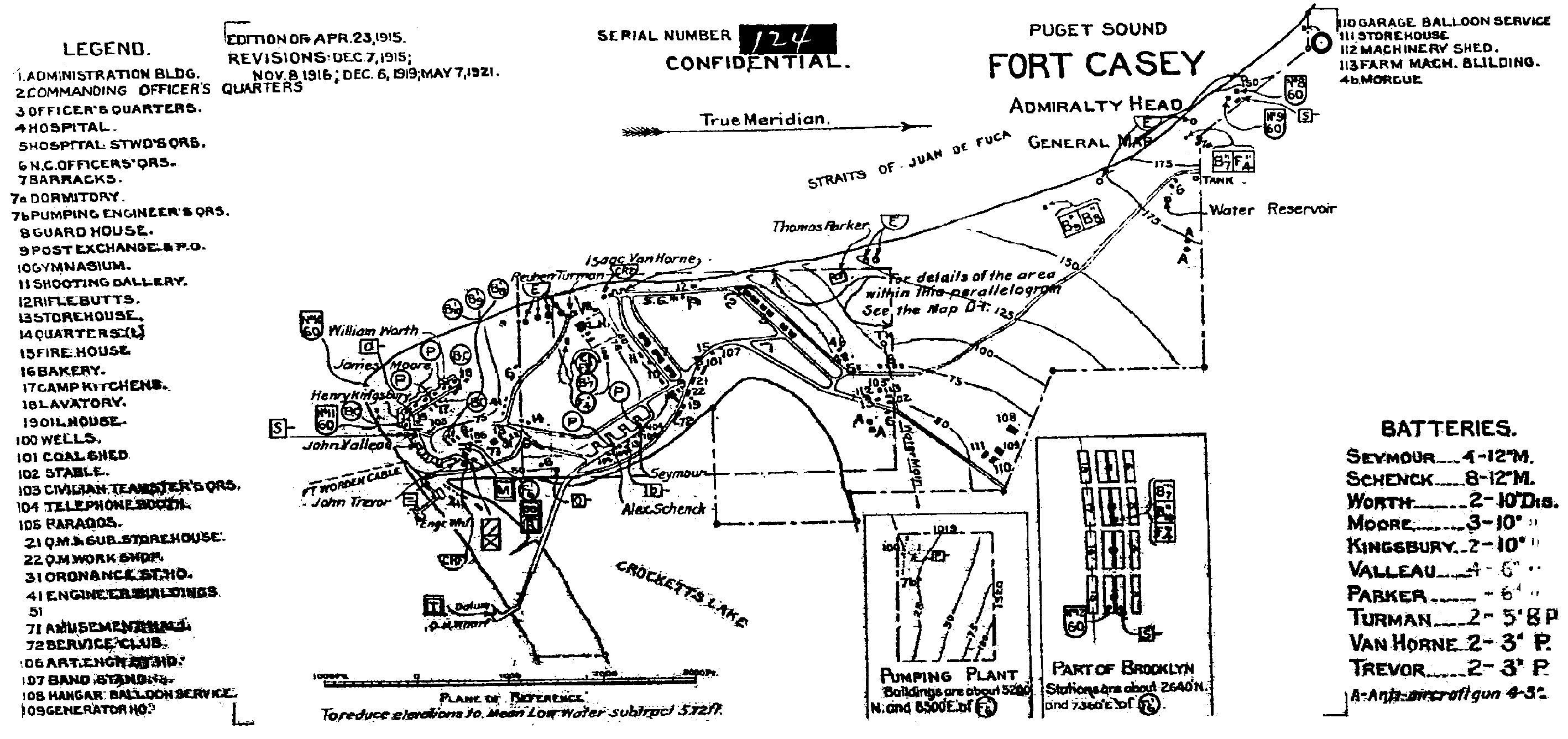

General mapMay 7, 1921

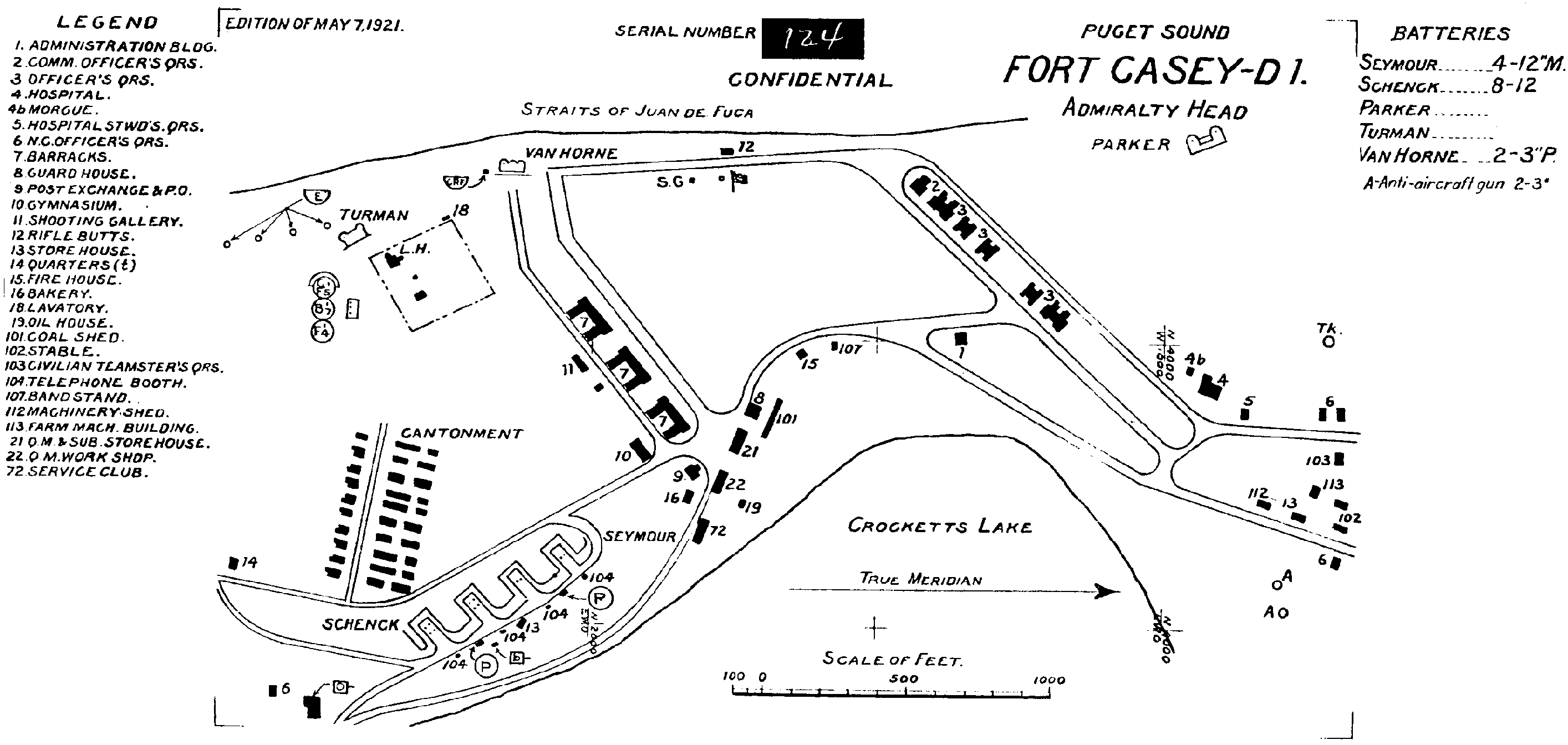

Detail mapMay 7, 1921

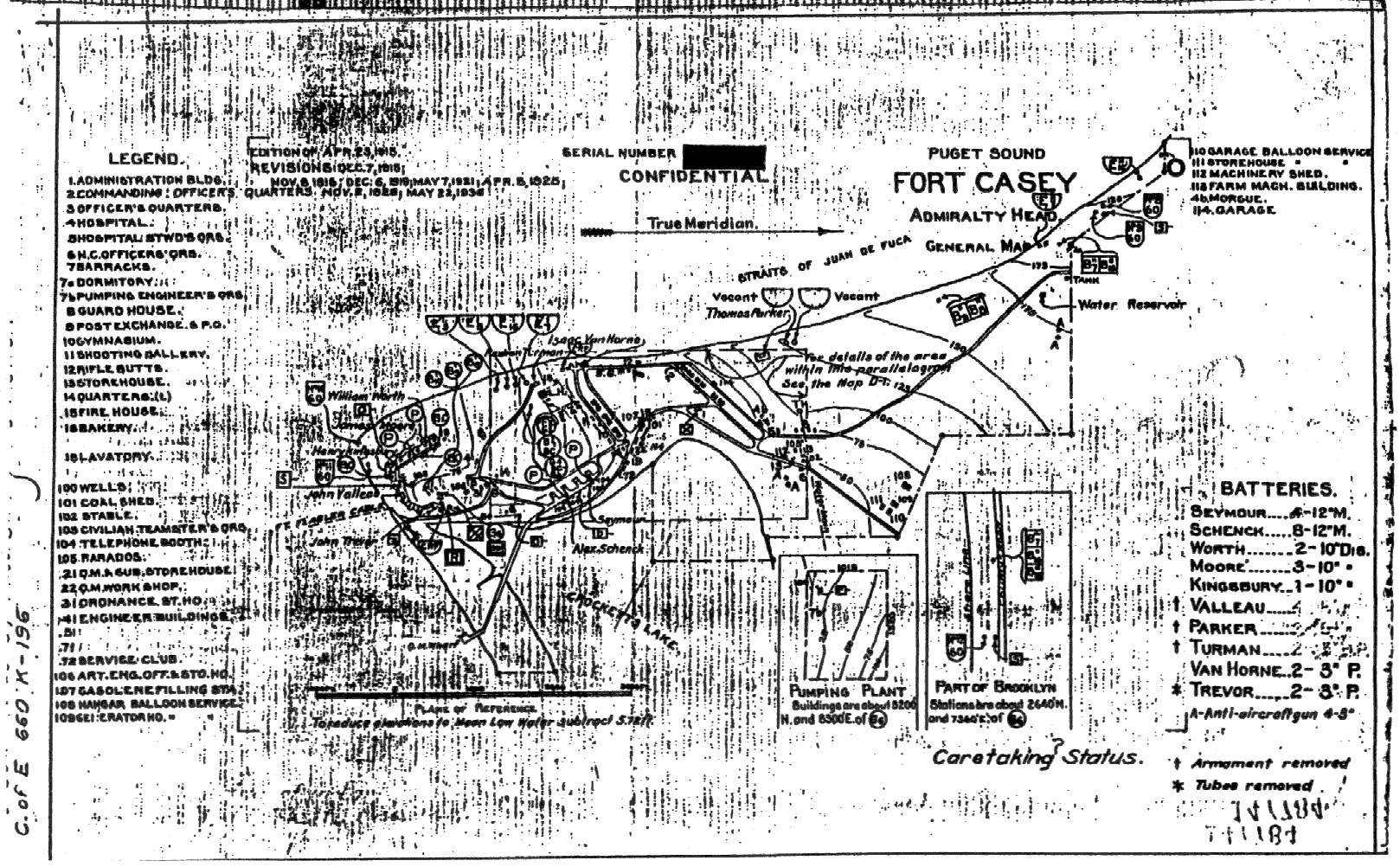

General mapMay 22, 1936

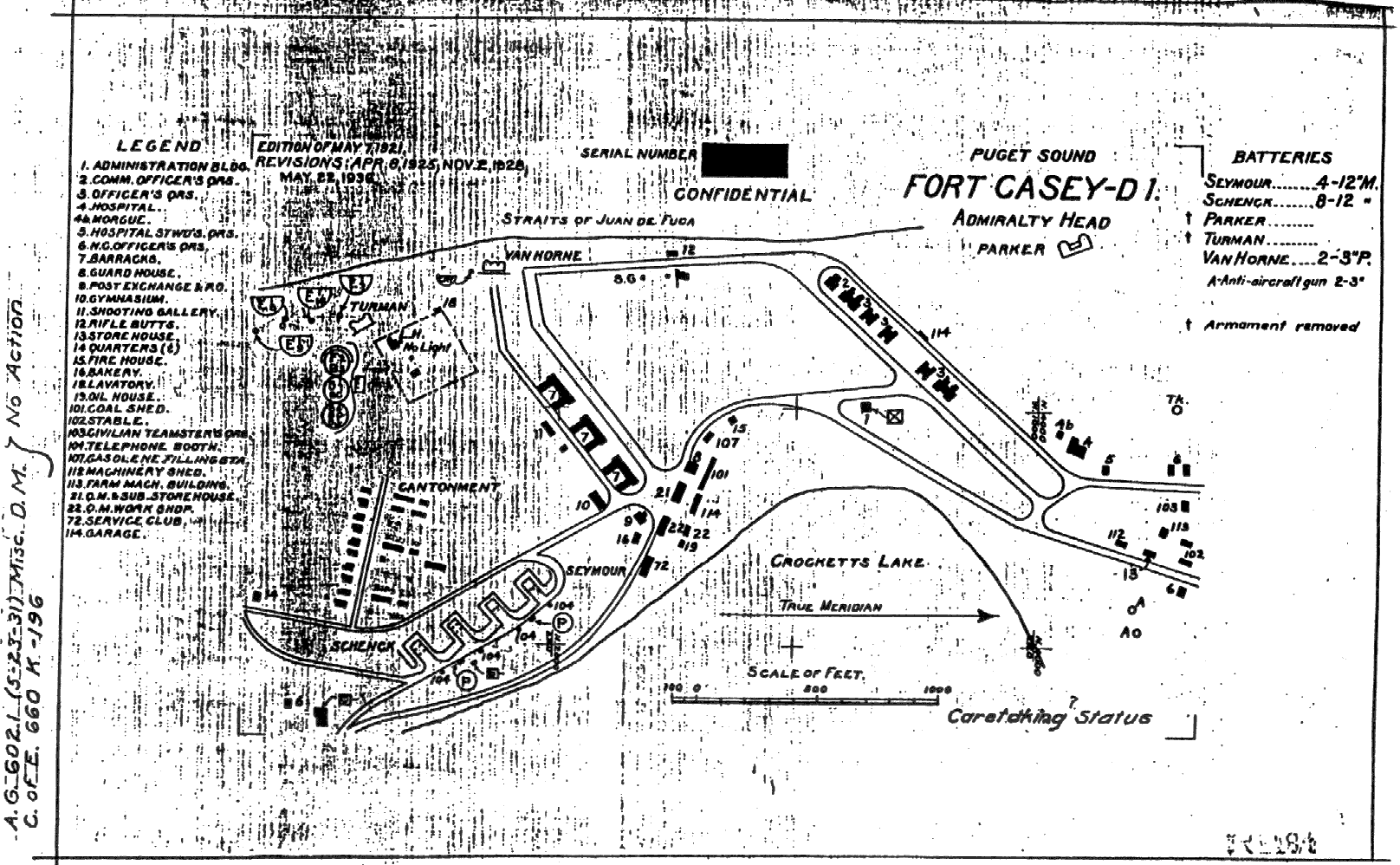

Detail mapMay 22, 1936
Fire control mapAugust 1, 1944

List of Fort Casey installations that are represented on this site:

Fire Control
F'' 4, Fort CaseyF" 4 & B"7 Station

Searchlight #9, Fort CaseySearchlights #8 and #9
